EZ Mount 1 with RL72020 Weigh Module

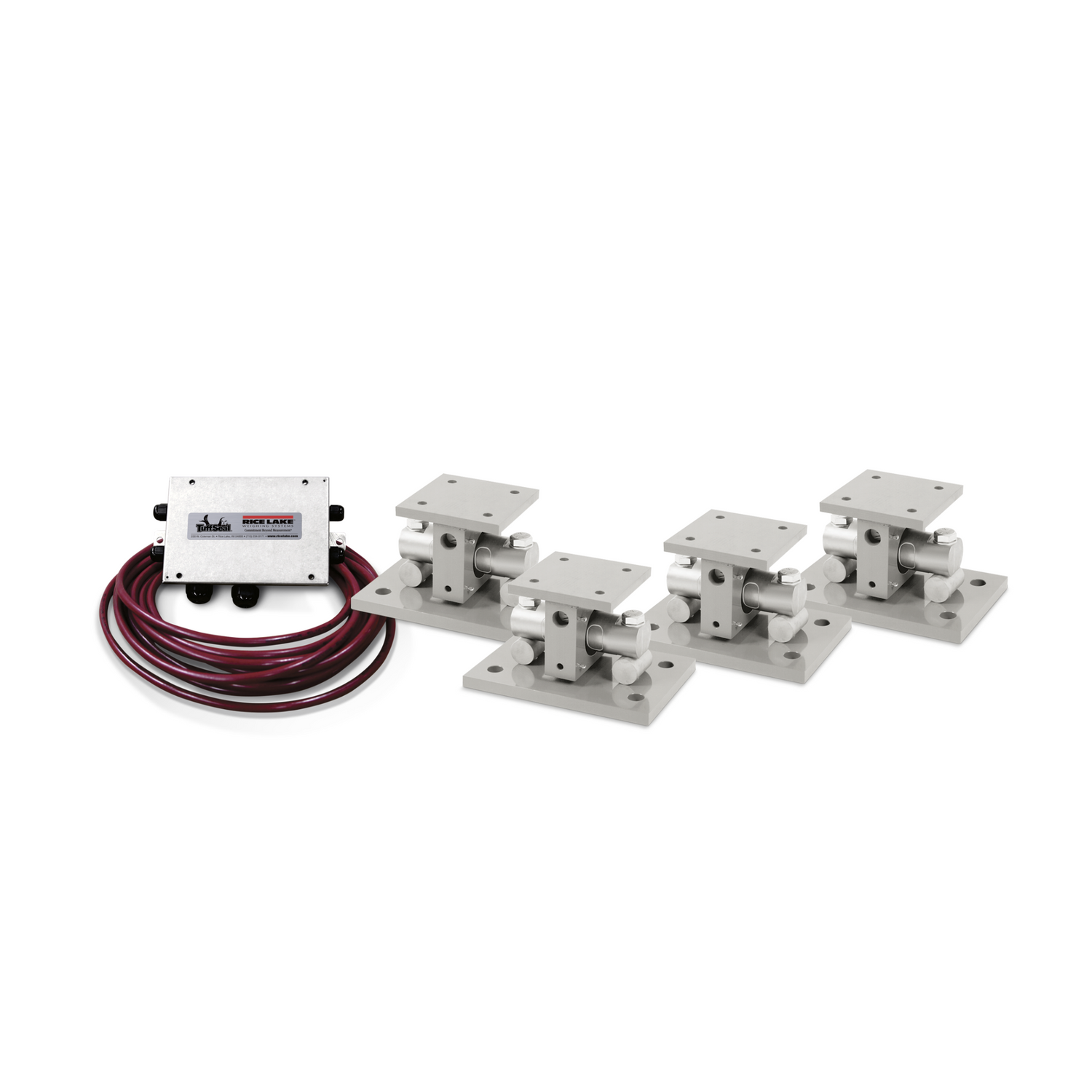

RiceLake EZ Mount 1 with RL72020 Weigh Module

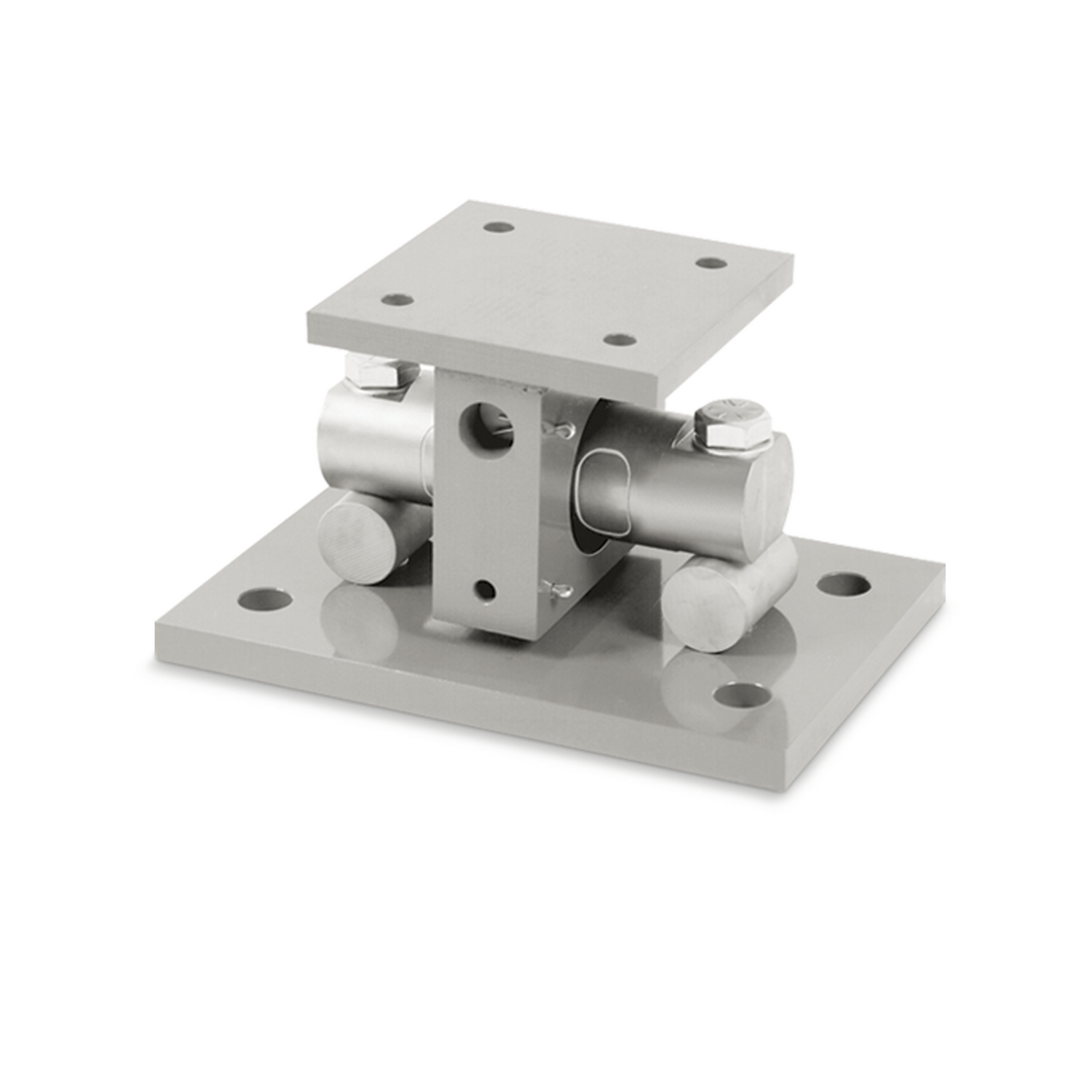

The EZ Mount 1 Series weigh module utilizes the double-ended beam design with an articulating top plate to provide superior accuracy in any loading condition. The double-ended beam design means there is less cumbersome hardware and each module has a lower profile than modules of different configurations. RL72020 Series load cells give you accuracy and dependability in many applications, including intrinsically safe and explosion-proof areas.
Applications:
- Medium-to heavy-capacity tank and hopper weighing applications
Standard Features
- Capacities (per module): 5,000 to 250,000 lb
- Unique sliding pin design compensates for thermal expansion/contraction
- Self-checking
- Easy load cell replacement
- Simplified design allows bolting directly to tank and floor
- Center-loaded double-ended shear beam design
- Low-profile design
- Painted mild steel construction

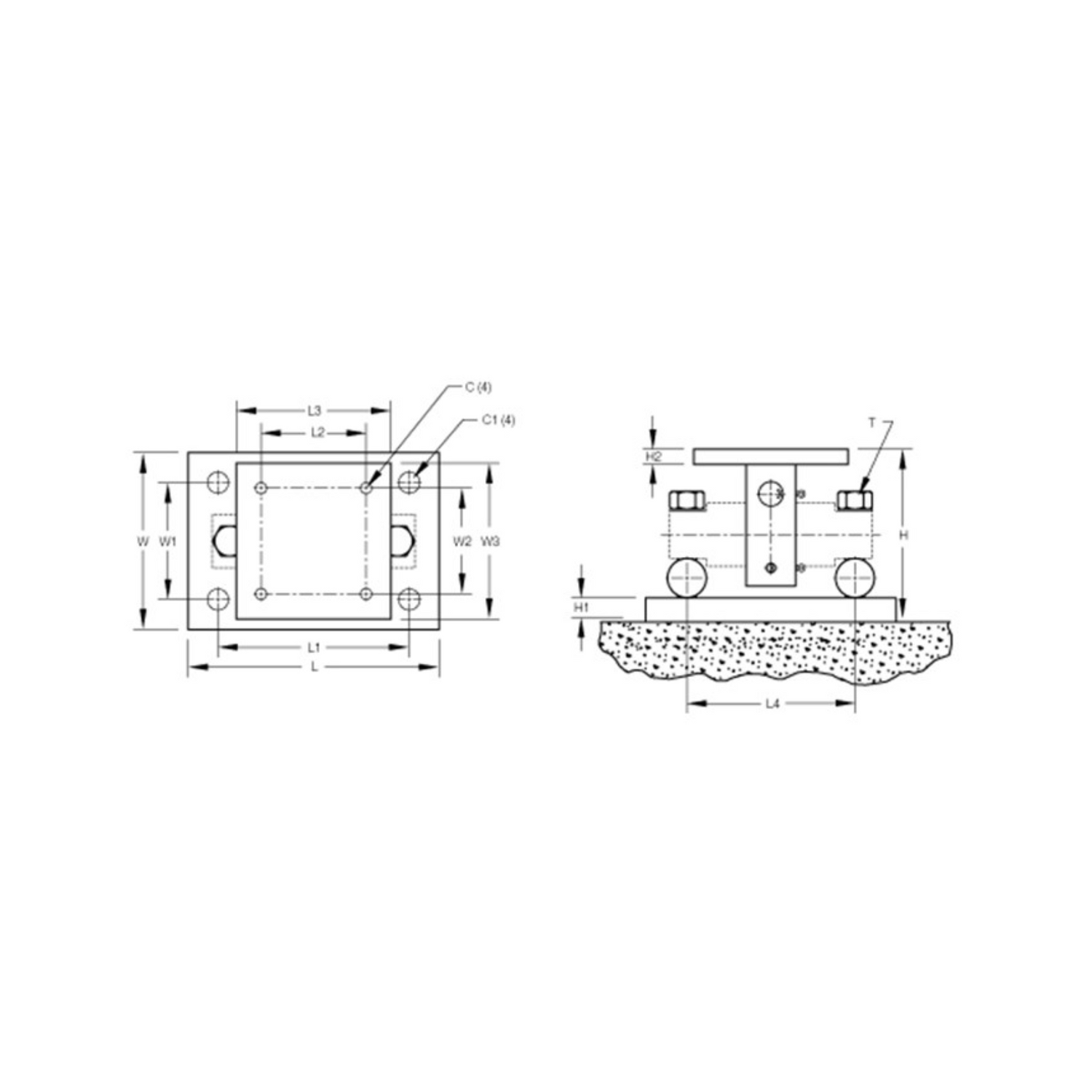

Specifications
Rated Capacitylb/in |
C |
C1 |
H |
H1 |
H2 |
L |
L1 |
L2 |
L3 |
L4 |
T |
W |
W1 |
W2 |
W3 |
5000-20,000 |
0.56 |
1.06 |
5.31 |
0.75 |
0.50 |
11.00 |
8.00 |
3.00 |
6.00 |
6.87 |
5/8-18 UNF |
7.50 |
4.00 |
3.00 |
6.00 |
30,000-60,000 |
0.68 |
1.19 |
8.43 |
1.00 |
0.75 |
15.00 |
11.50 |
5.12 |
8.00 |
8.50 |
1-14 UNS |
10.00 |
6.00 |
5.12 |
8.00 |
100,000 |
0.81 |
1.38 |
10.37 |
1.25 |
1.25 |
18.00 |
14.00 |
7.50 |
10.00 |
9.50 |
1-14 UNS |
12.00 |
9.00 |
7.50 |
10.00 |
150,000 |
0.81 |
1.38 |
10.37 |
1.25 |
1.25 |
18.00 |
14.00 |
7.50 |
10.00 |
9.50 |
1-14 UNS |
12.00 |
9.00 |
7.50 |
10.00 |
200,000 - 250,000 |
1.06 |
1.88 |
16.75 |
2.00 |
2.00 |
26.00 |
20.00 |
9.00 |
12.00 |
13.00 |
1 1/2-12 UNS |
12.00 |
6.00 |
9.00 |
12.00 |
