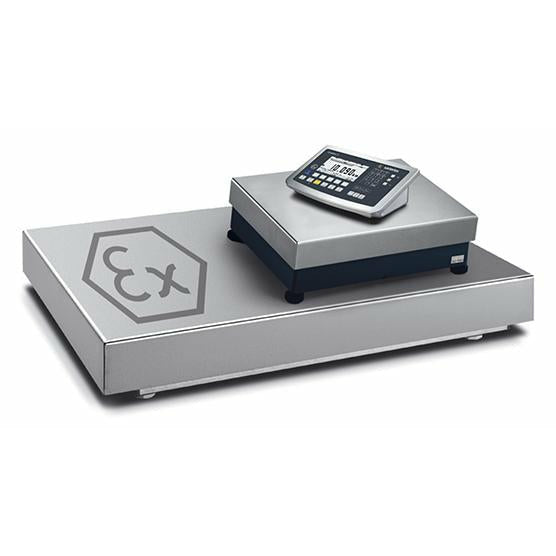

Explosion Proof Scales - IS-Ex Series

Designed for weighing in dangerous mixtures of gas and dust, the Minebea Intec IS-Ex series of explosion-proof scales offer high-resolution accuracy at an affordable price. The IS-Ex series of platform scales feature a monolithic weigh cell and intelligent communication capabilities for use in automated systems in hazardous areas. With a weighing capacity of 0.001g to 300 kg, these platforms meet the demands of the automated process industry for fast and reliable results, high precision, rugged construction, direct integration in control processes and network connectivity.

Notable Features

Capacity: 0.001 g to 300 kg.
High IP Rating: 54/65/67
Readability: 0.001 to 1 g
Calibration: built-in motorized calibration weight
Connection: RS-485 data output as a standard (RS232, TTY10mA optionally available)
Resolution: 600,000 d
Platform Sizes: 4 from 240 x 294 mm, 3 from 300 x 400 mm, and 2 from 800 x 600 mm.
Applications: Ideal for use in Zones 1 and 2 (gases). Even in Zones 20, 21, and 22 (dust).

IS-EX Explosion Proof Scales Data Sheet

Specifications
Weighing Capacity (kg)	0.62 to 300
Readability (g)	0.001 to 2
Size (mm)	240 x 294 / 300 x 400 / 800 x 600
30,000 d Resolution in g	0.5 to 100 g
IP Rating	IP54/65/67
Net Weight (kg)	7 to 70
